| 起源の場所: | 中国 |
|---|---|
| ブランド名: | PHC |
| 証明: | ROHS，REACH |
| 最小注文数量: | 1000 |
| 価格: | $20/10pcs for sample |
| 支払条件: | L/C、T/T、D/A、D/P |
| 供給の能力: | 10000pcs/1週間 |
| 防水のレベル: | IP67 | 材料: | 高い金メッキの蛍光銅 |
|---|---|---|---|
| パフォーマンス: | SGS | インジケータ: | それなし |
| 作業温度: | -20 ℃〜75℃ | 製品タイプ: | RJ45 LAN トランスフォーマー |
| 端子インターフェイス: | RJ45/RJ11/RJ48 | 材料: | PBT、PA46、PVC |
| パネルの厚さ: | ≤4mm | 絶縁抵抗: | 1000mΩΩ |
| 接触抵抗: | 40mΩΩ | ||
| ハイライト: | RJ45 waterproof connector,industrial RJ11 modular jack,RJ48 waterproof modular connector |
||
Product and Electrical Parameters

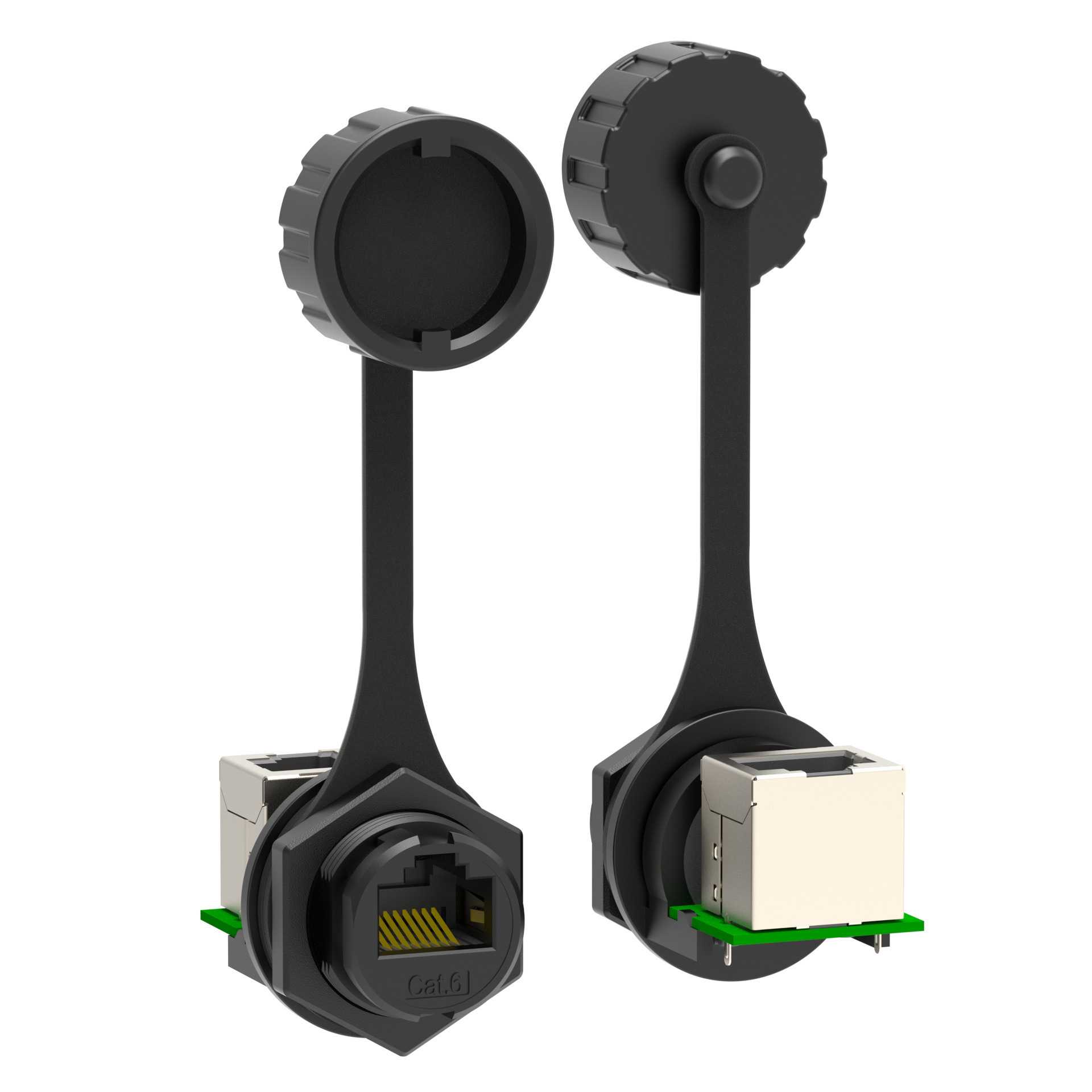

Name:RJ11/45/48 Industrial Waterproof Connector
Material: High-quality flame-retardant PA66
Terminal: Phosphor bronze contact with heavy gold plating
Interface: RJ11/45/48
Performance:Complies with standards, passed SGS testing
Operating
Temperature:** -20°C to +75°C
Flame Rating: UL94-V0
Installation Method:Panel mount (with locking mechanism)
Panel Thickness: ≤ 4 mm
Rated Voltage:125 VAC
Ingress Protection (IP) Rating:IP67
Durability (Mating Cycles): ≥ 1000 cycles
Withstanding Voltage:1000 V AC
Insulation Resistance:1000 MΩ
