| Orientation: | Top Entry | Operatingtemperaturerange: | -40°C To 85°C |
|---|---|---|---|
| Cross Part Number: | ARJM11D7-811-NN-CW4 | Mechanicals: | 21.25x15.90x13.40mm |
| Data Rate: | 10/100 Base-T | Mount: | Through-hole |
| Magnetic: | 1000 Base - T | Type: | DIP / Side Entry |
| ハイライト: | RJ45 modular jack connector,Ethernet jack mechanical dimensions,Network interface component with warranty |
||

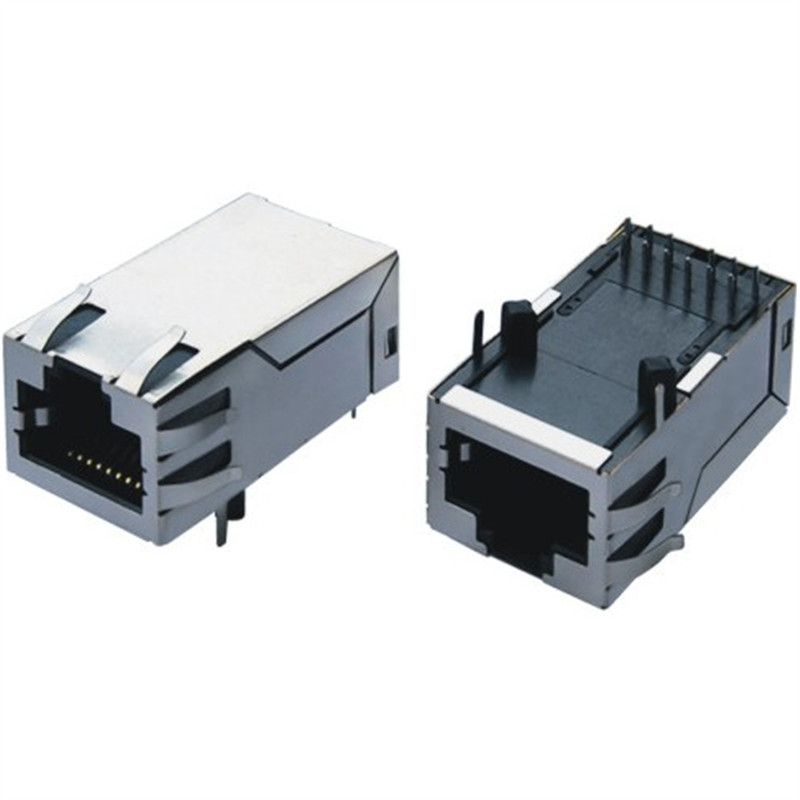

The RJ45 Modular Jack is an essential component widely used in networking applications, designed to provide reliable and efficient connectivity for Ethernet cables. This RJ45 Data Jack is engineered to meet the demanding requirements of modern communication systems, offering superior performance and durability.
One of the standout features of this Ethernet Jack Connector is its excellent insulation resistance. With a minimum insulation resistance of 1000 Megohms at 500 Vdc, it guarantees minimal electrical leakage and optimal signal integrity.
The RJ45 Modular Jack is designed to operate efficiently within a broad temperature range, from -40°C to 85°C. This wide operating temperature range makes it suitable for use in diverse environments, including industrial settings and outdoor installations.
Mounting and installation are simplified with the Through-Hole Technology (THT) mounting style, which provides a secure and stable connection to printed circuit boards (PCBs). THT mounting enhances mechanical strength and durability.
This product adheres to the TIA/EIA-568-B standard, ensuring compatibility with a wide range of networking equipment and cables. Manufactured from high-quality polymers such as PBT (Polybutylene Terephthalate), PA66 (Nylon 66), and PA46 (Nylon 46), the Modular Plug Connector exhibits excellent mechanical strength, heat resistance, and chemical stability.
| Parameter | Value |
|---|---|
| Data Rate | 10/100 Base-T |
| Specification | ARJC02-111006K |
| Mechanical Dimensions | 21.25 x 15.90 x 13.40 mm |
| Insulation Resistance | 1000 Megohms Min @ 500 Vdc |
| Material | PBT, PA66, PA46 |
| Standards Compliance | TIA/EIA-568-B |
| Operating Temperature Range | -40°C To 85°C |
| Type | DIP / Side Entry |
| Mounting Style | Through-hole |
| Shield Material | 0.2mm Brass |
The RJ45 Modular Jack is primarily utilized in server environments where stable and high-speed network connections are critical. Its robust construction ensures long-lasting performance even under continuous heavy usage.
In data centers and enterprise server rooms, the RJ45 Data Jack serves as a critical interface for connecting network cables to servers, switches, and routers. Its modular plug connector design allows for easy installation and replacement.
Besides server rooms, this RJ45 Data Jack is also applicable in office networking setups, telecommunications equipment, and industrial automation systems. The use of high-grade insulating materials ensures it can operate efficiently in environments with varying temperature and humidity levels.
